F0523

P Profile - 20x35 mm

Thermoplastic Elastomer Rubber

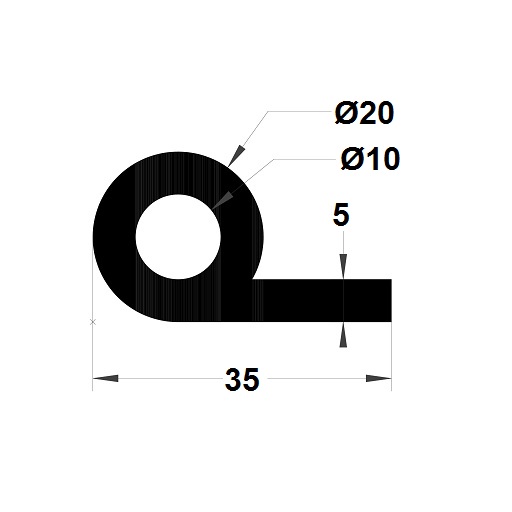

P Profile 20 mm x 35 mm, thickness 5 mm. Ensures a good seal thanks to its shape, compatible with all materials. Adhesive backing & drilling available on request. Bondable . Weldable at corner or end-to-end to make a ring.

Technical data

Overall Dimension L1 (mm) 20
Overall Dimension L2 (mm) 35
Main Functional Dimension (L3) (mm) 20
Main Functional Dimension (L4) (mm) 5
Dimension L6 (mm) 10
