F0241
Round U Profile - 16,50x12 mm
Thermoplastic Elastomer Rubber
Round U seal 16,5 mm x 12 mm for 5 mm edge protection. Self-clipping. Fastened on stainless-steel, steel, aluminium, carbon, fiber-glass, timber, chipboard, cardboard, composite. Compatible with mostly all plastics (PVC, polycarbonat, plexiglass…). Bondable (please make a test before).

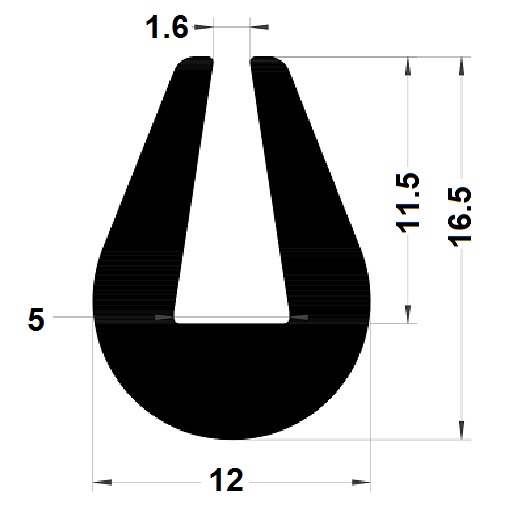

Technical data
Overall Dimension L1 (mm) | 16.5 |
Overall Dimension L2 (mm) | 12 |
Main Functional Dimension (L3) (mm) | 5 |
Main Functional Dimension (L4) (mm) | 11.5 |
