F1511
U Profile - 16x12 mm
Thermoplastic Elastomer Rubber
U gasket 16 mm x 12 mm for 4 mm edge protection. Fastened on stainless-steel, steel, aluminium, carbon, fiber-glass, timber, chipboard, cardboard, composite. Compatible with mostly all plastics (PVC, polycarbonat, plexiglass…). Bondable (please make a test before).

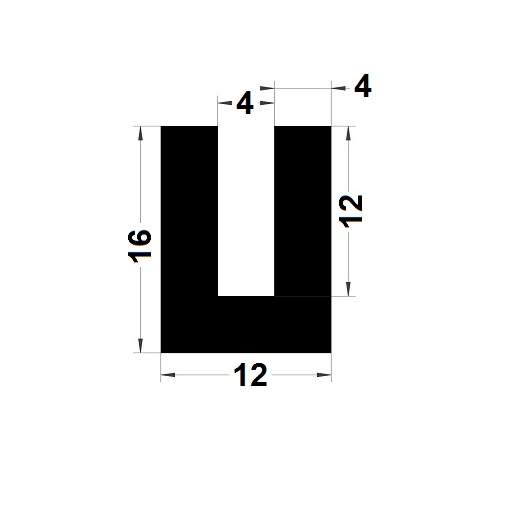

Technical data
| Overall Dimension L1 (mm) | 16 |
| Overall Dimension L2 (mm) | 12 |
| Main Functional Dimension (L3) (mm) | 4 |
| Main Functional Dimension (L4) (mm) | 12 |
| Dimension L5 (mm) | 4 |
| Dimension L6 (mm) | 4 |
