F2633
U Profile - 12,50x13,50 mm
Thermoplastic Elastomer Rubber
U gasket 12,5 mm x 13,5 mm for 5,6 mm edge protection. Fastened on stainless-steel, steel, aluminium, carbon, fiber-glass, timber, chipboard, cardboard, composite. Compatible with mostly all plastics (PVC, polycarbonat, plexiglass…). Bondable (please make a test before).

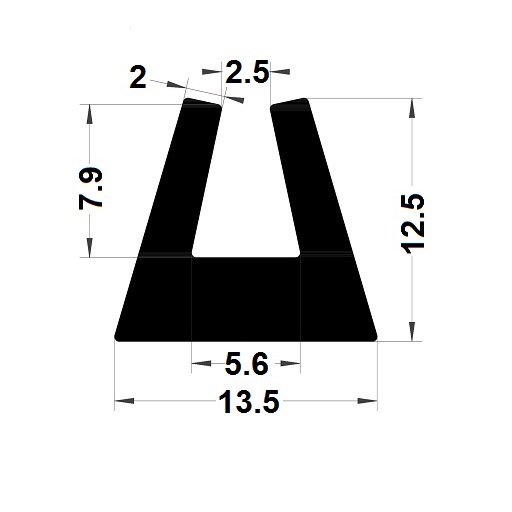

Technical data
| Overall Dimension L1 (mm) | 12.5 |
| Overall Dimension L2 (mm) | 13.5 |
| Main Functional Dimension (L3) (mm) | 5.6 |
| Main Functional Dimension (L4) (mm) | 7.9 |
| Dimension L5 (mm) | 2 |
| Dimension L6 (mm) | 4.6 |
