F1653
Wedge gasket - 11x15,60 mm
Thermoplastic Elastomer Rubber
Profile for tightness and fixing 11 mm x 15,6 mm. Wedge gaskets are used to fill and block any gaps for sealing a glass in its frame (sash or opening) in timber, aluminium, steel. No need to glue. For an easy mounting, slightly luricate with water.

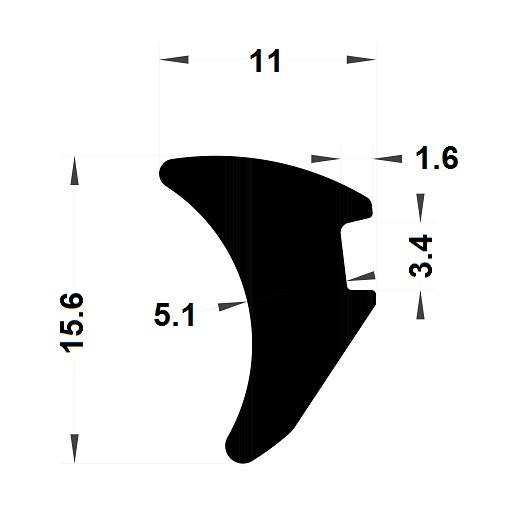

Technical data
| Overall Dimension L1 (mm) | 11 |
| Overall Dimension L2 (mm) | 15.6 |
| Main Functional Dimension (L3) (mm) | 3.4 |
| Main Functional Dimension (L4) (mm) | 5.1 |
| Dimension L5 (mm) | 1.6 |
